Steam Reformers Material Selection and Degradation Mechanism

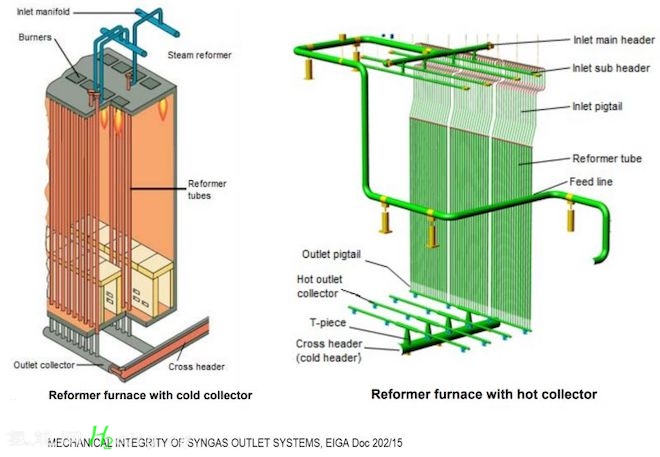

Steam reformers are key units for large-scale hydrogen, ammonia, and methanol production.

? 1 Material of construction in syngas outlet systems:

1.1 Syngas-exposed components use nickel-based alloys and reach 816-927°C (1500-1700°F).

1.2 Reformer tubes are high nickel alloys with the addition of microalloy elements.

1.3 For T between 149°C to 204°C (300°F to 400°F), carbon or alloy steels are used in refractory lined sections.

? 2 Failure modes

2.1 Metal dusting

Metal dusting is a rapid form of carburization that leads to the loss of material thickness.

Tempreature range for metal dusting = 427 °C to 704 °C (800 °F to 1300 °F).

Metal dusting is a chemical reaction that forms solid carbon and leads to metal disintegration.

• Reduction reaction: CO + H2 = C + H2O; or

• Boudouard reaction: 2CO = C + CO2.

2.2 Thermal ageing:

High temperature cast alloys undergo thermal aging, resulting in microstructural changes over time at service temperature and embrittlement.

Solution annealing can restore the mechanical properties of thermally aged alloys, but not creep damage.

Cast alloys are more susceptible to thermal aging induced embrittlement compared to wrought or forged materials.

2.3 Thermal fatigue

Thermal fatigue occurs due to cyclic stresses caused by temperature fluctuations.

If ΔT >= 110°C (200°F), then the likelihood of cracking increases.

ΔT = temperature swing

2.4 Creep

Under load and high temperatures, metals can gradually deform below yield stress in a time-dependent process known as creep.

Alloy Threshold temperature:

• Carbon steels 700 °F (371 °C)

• Cr-Mo steels 800 °F (427 °C)

• Austenitic stainless steels 900 °F (482 °C)

• High nickel alloys 1100 °F (593 °C)

2.5 Stress corrosion cracking (SCC):

SSC occurs when a susceptible material is exposed to a corrosive environment and a tensile stress is applied simultaneously.

The alloys with higher nickel content exhibit greater resistance to SCC.

2.6 Stress relaxation cracking (SRC)

Limited ductility causes cracking at grain boundaries, often seen in heavily stressed components with thick walls.

SRC = f(T)

Where T = temperature from 499°C to 749°C (930°F to 1380°F) and f is a function.

2.7 High-temperature hydrogen attack (HTHA)

HTHA is caused by hydrogen exposure at high temperatures and pressures. Hydrogen reacts with steel carbides, forming methane (CH4). Methane pressure builds up, leading to cracks (refer to API RP 941).

2.8 Hydrogen embrittlement

Hydrogen embrittlement degrades materials by introducing hydrogen, causing lower strength, ductility, and increased fatigue crack growth.

Hydrogen embrittlement is more likely to occur at room temperature, but less likely to occur at above 149°C (300°F).

EIGA Doc 202/15.

✅ My posts reflect my personal perspective, knowledge, experience, and advice.

? Is it possible for hydrogen embrittlement to occur at temperatures above 149°C (300°F)?
